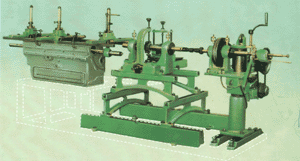

JCS007镗主轴瓦连杆瓦机
MAIN SHAFT BUSHING AND ROD BUSHING BORING-MACHINE
MODEL JCS007 |
JCS007型镗主轴瓦连杆瓦机适用于汽车、拖拉机等汽油机和柴油机的主轴瓦、凸轮轴瓦、连杆瓦和连杆铜套的镗削加工。由于机床采用组合形式，使得机床配置灵活、操作简便、加工质量优良，是中、小型汽、拖修理厂家的必备设备。
The Main Shaft Bushing and Rod Bushing Boring Machine Model
J CS007
js suiable for use in boring of main shaft bushing, cam shaft
bushing, rod copper sleeve. because of comostition form is used.
therefore, it is flexible and onvenient to operate, and it also
has a good processing quality. It must satisfy you.
基本参数 MIANSPECIFICATION
| 镗主轴孔和凸轮轴孔范围 |
Range of main shagt hole diameter to be bored |
Φ36-Φ120mm |
| 镗连杆孔范围 |
Range of rod hole diameter to be bored |
Φ28-Φ100mm |
| 镗连杆中心距 |
Rod centers distance |
200-400mm |
| 镗缸体最大长度 |
Max.length of cylinder body to be bored |
1120mm |
| 动力头垂直升降距离 |
power head vertical up-down distance |
200mm |
| 主轴最大伸出长度 |
Main shaft max . Elongation |
150mm |
| 主轴转速 |
Main shaft speed |
175、250、350mm |
| 镗杆进给量 |
Boring rod feed quantity |
0.048、0.095、0.186mm pr |
| 机床尺寸（长×宽×高） |
Dimensions(L×W×H) |
1780×980×1155mm3 |
| 电机功率 |
Motor power |
1.1kw |
| 净重 |
Net weight |
780kg |
|
|
|
