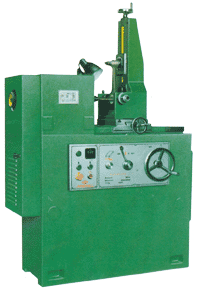

本机床主要用于镗削汽车、拖拉机等汽油发动机和柴油机的连杆轴承孔（连杆及铜套），必要时也可对连杆轴承孔进行微量修镗；更换相应的夹具，也可完成其它零件上孔的粗精镗工序。该机床备有对中、对刀量表、镗刀、调刀架等附具。
The machine is mainly used in boring rod bushing hole (rodbushing
and copper bush) of diesel and gasoline engine of automobilesand
tractors In case of necessity, rod bushing seat hole canbe fine-bored.
The rough and fine boring proce-ssing for the corresponding
clamps. Besides, it has the acce-ssories for centering sectifying
tool boring tool and boring micro-adjustment etc
基本参数 MIANSPECIFICATION
| 镗孔直径范围 Bored hole diameter |
Φ16-Φ100mm |
连杆两孔中心距离
Distance of rod 2-hole centers |
100-425mm |
| 工作台行程 Work table travel |
220mm |
| 主轴转速 Main shaft speed |
350.530.780.1180rpm |
| 镗杆直径 Boring rod diameter |
12.16.24.40mm |
| 主电机功率 Main motor power |
0.65/0.85mm |
机床外形尺寸（长×宽×高）
Dimensions(L×W×H) |
1150×570×1710mm |
|
